Balance Plate calibration & diagnostics

Running the calibration utility

In order to use your Balance Plate it needs a calibration file. A calibration file is created for each Balance Plate, so no file is the same. If you do not have a calibration file installed, it’s also likely that your plate is not registered for warranty purposes. This article covers the process of obtaining a calibration file & registering the plate.

This article is for removing unwanted noise and improving the pressure distribution for Balance Plate 3 & up.

The Balance Plate consists of 2048 high accuracy pressure sensors, and using the Sensor Edge Utility to zero the plate may be necessary to ensure best accuracy. This article is a step by step tutorial on how to zero set the Balance Plate.

IMPORTANT!

There are two parts to this process

Part 1. Using the Sensor Edge utility to obtain the latest calibration file for your plate.

Part 2. Installing that calibration file in Swing Catalyst. Please be sure to read this entire support article.

Part 1: Using the SE utility to obtain calibration file.

Connect the plate to the computer.

  • Make sure Swing Catalyst software is closed, SE Utility will not be able to detect your plate if Swing Catalyst is running.

  • Open the newly installed SE Utility

  • Follow the instructions below.

  • Make sure you have a monitor or TV connected to your computer so you can see the screen when standing on the Balance Plate.

If you have an older version installed please uninstall it first via Add or Remove Programs.

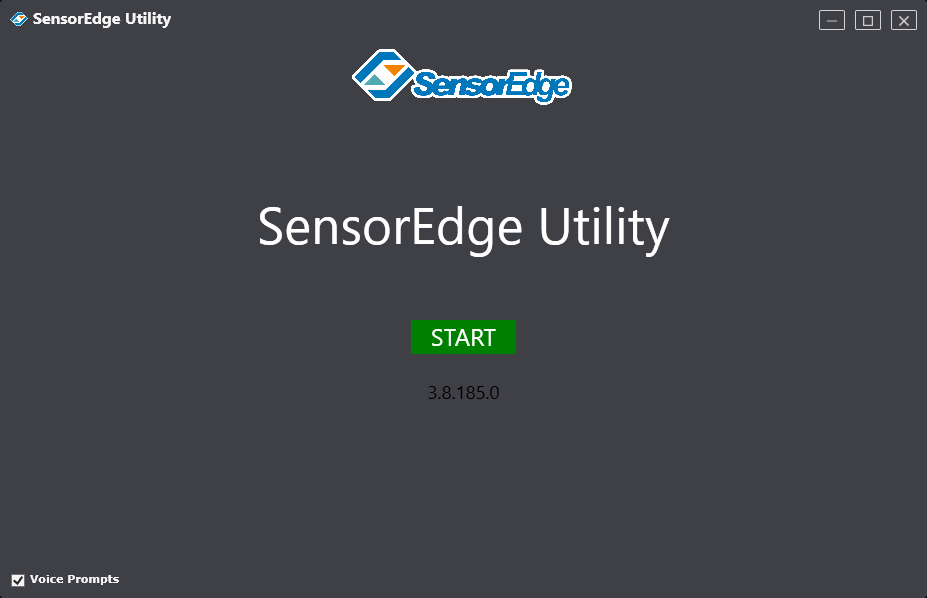

Click Start:

SEU_2021-08-11_12-32-46.png SEU_2021-08-11_12-32-46.png

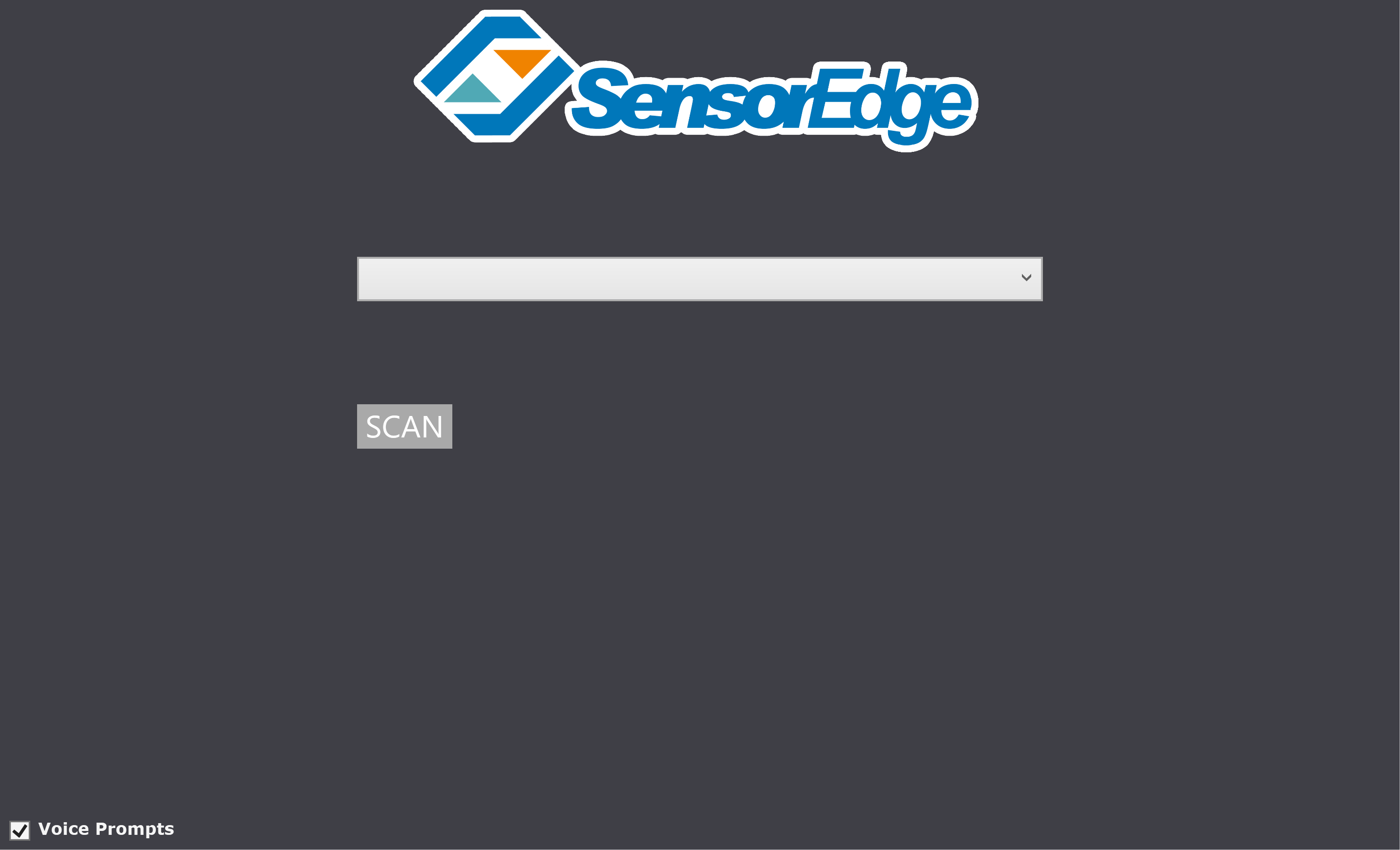

After clicking start it will automatically attempt to scan for devices, if it does not find your plate, click the drop down menu and select your Balance Plate.

SnoopScreenshot_300.png SnoopScreenshot_300.png

Click ScanSEU_2021-08-11_13-10-42.png SEU_2021-08-11_13-10-42.png

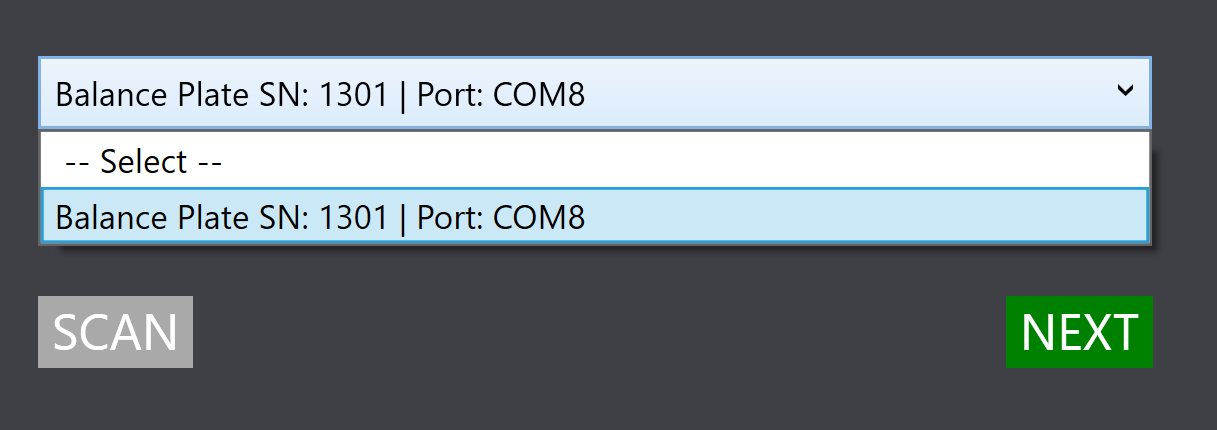

Select the device that matches your plate’s serial number and click Next.

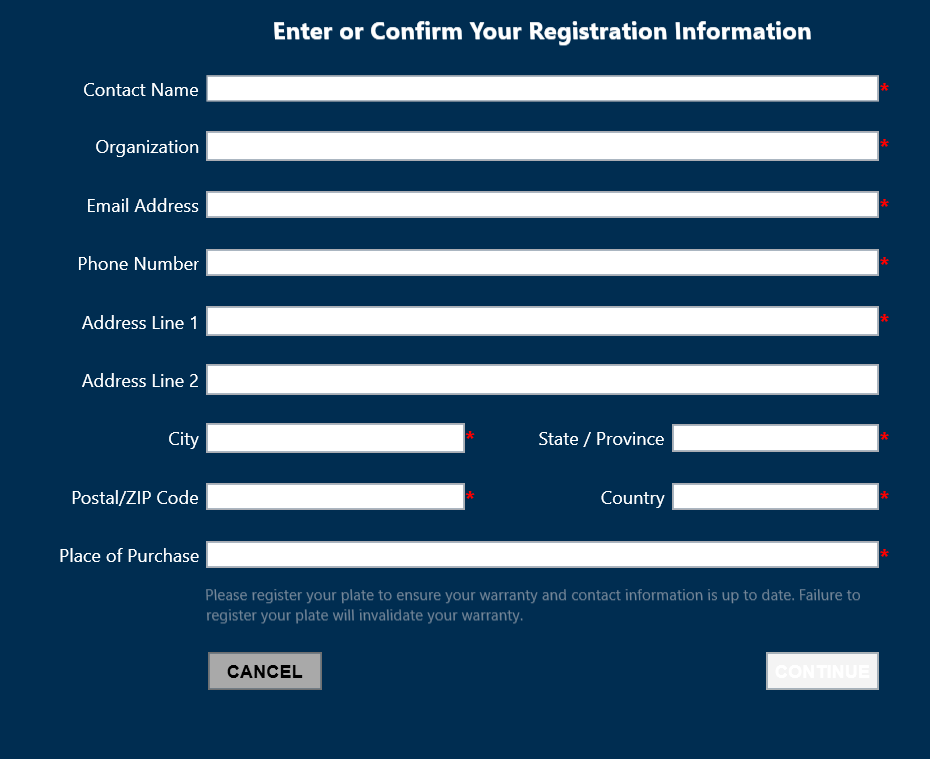

Registering your Balance Plate

2021-08-11_12-59-01.png 2021-08-11_12-59-01.png

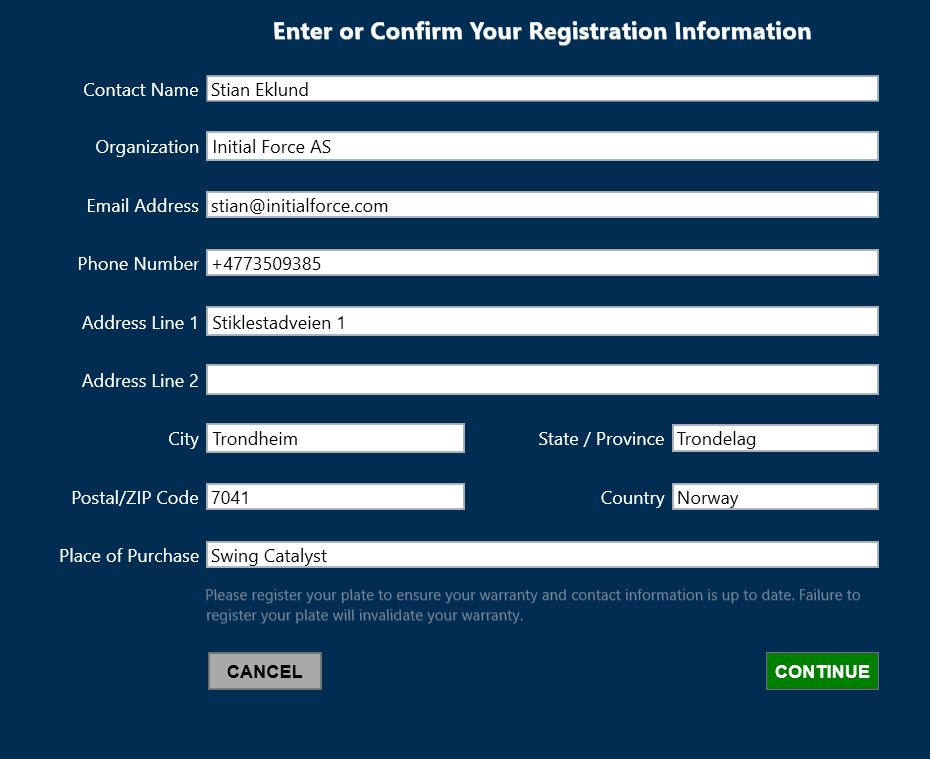

Example of filled out registration information2021-08-11_13-02-17.png 2021-08-11_13-02-17.png

Once you’ve filled out the required information for warranty and service purposes click Continue.

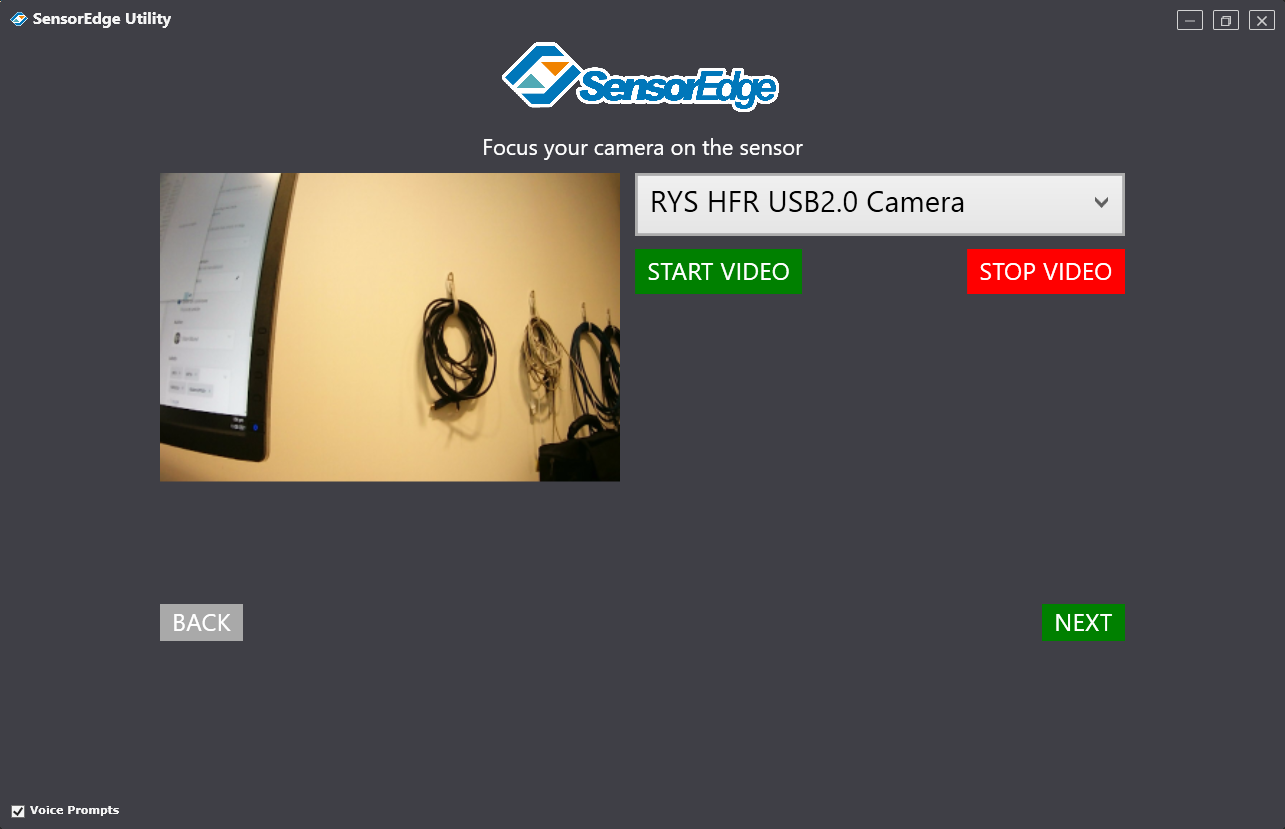

If possible select a camera and point it to show the Balance Plate, and click Next.

A camera is not required though, you can still proceed if no camera is detected.

SEU_2021-08-11_13-04-31.png SEU_2021-08-11_13-04-31.png

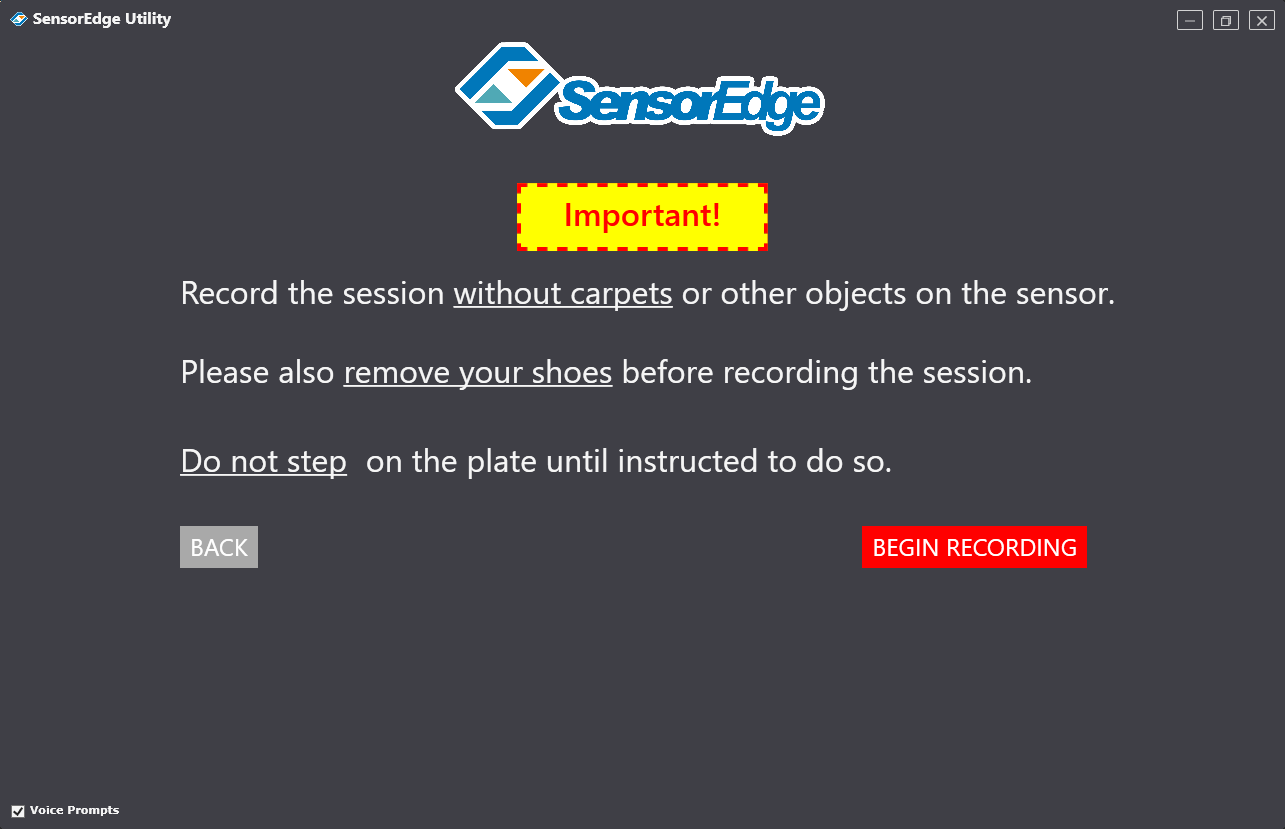

Make sure to remove the carpet and any other objects from the Balance Plate, this is to ensure that the readings are not impacted by any external factors.

SEU_2021-08-11_13-05-17.png SEU_2021-08-11_13-05-17.png

Executing the calibration process

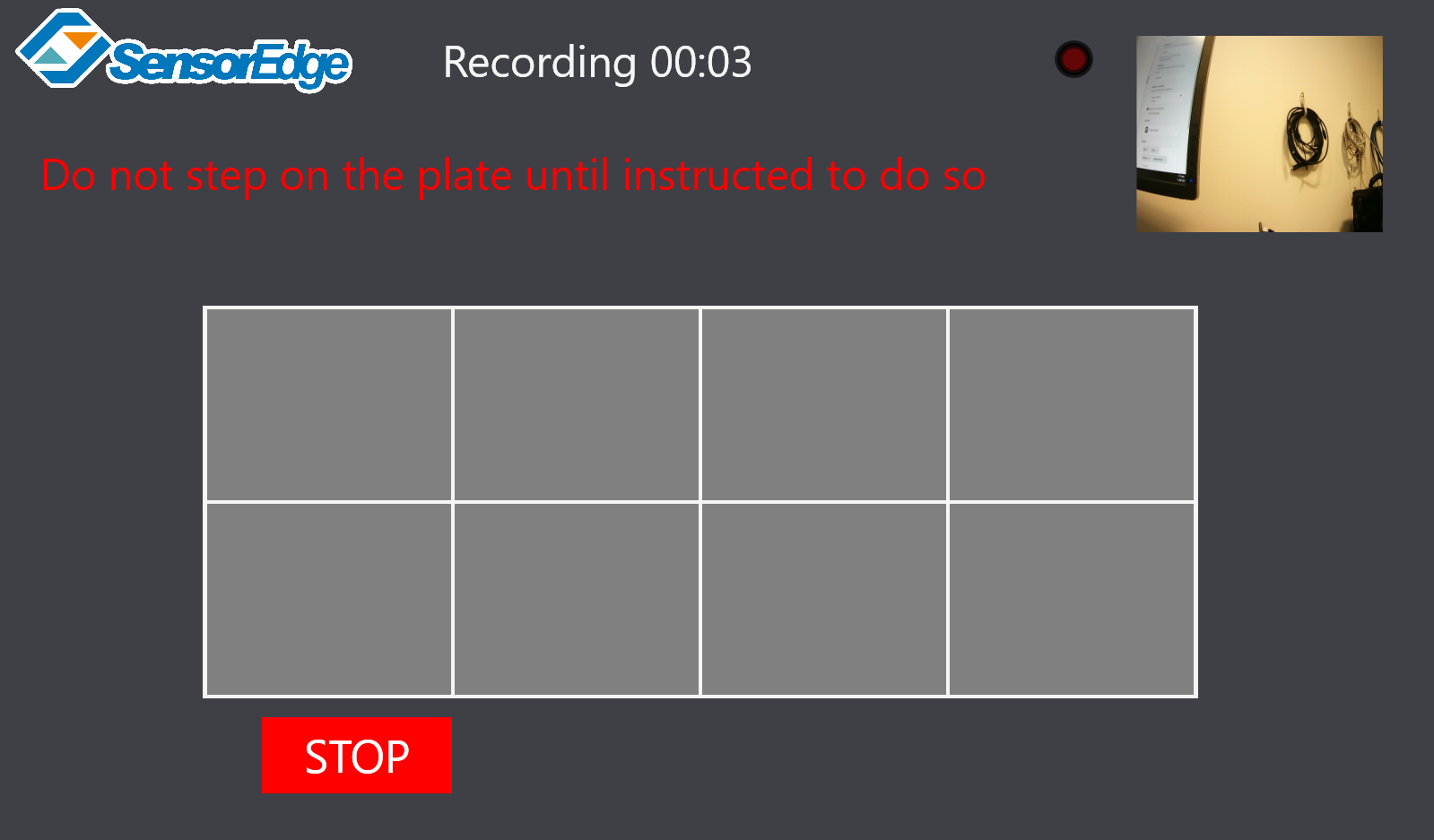

Before stepping on the plate the utility collects data in order to have a baseline to compare to.

Please make sure you don’t accidentally stand on the plate until the utility instructs you to do so.

SEU_2021-08-11_13-12-19.png SEU_2021-08-11_13-12-19.png

Positioning

It’s important that you stand on the plate as indicated by the utility.

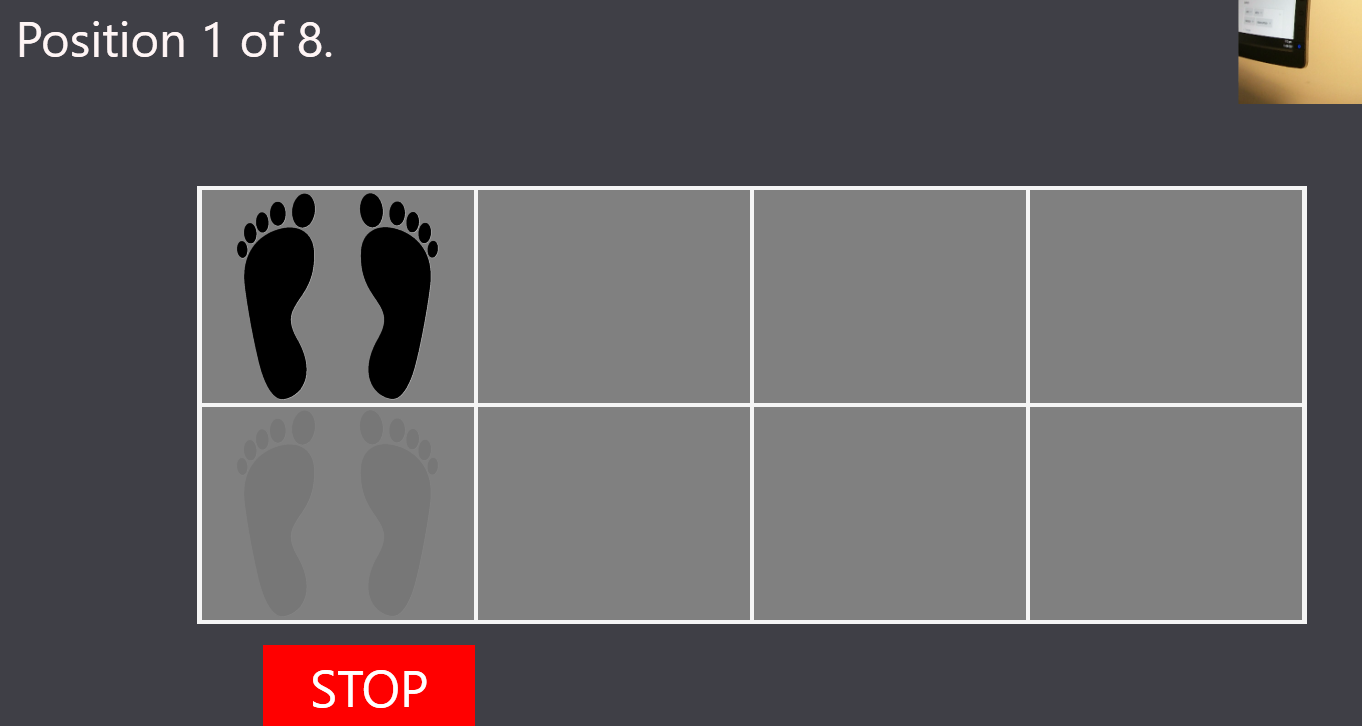

The dark feet show where you should be standing, and the grey feet show where you should stand next.

SEU_2021-08-11_13-12-27.png SEU_2021-08-11_13-12-27.png

Please follow each step as it is important to activate all of the regions of the plate.

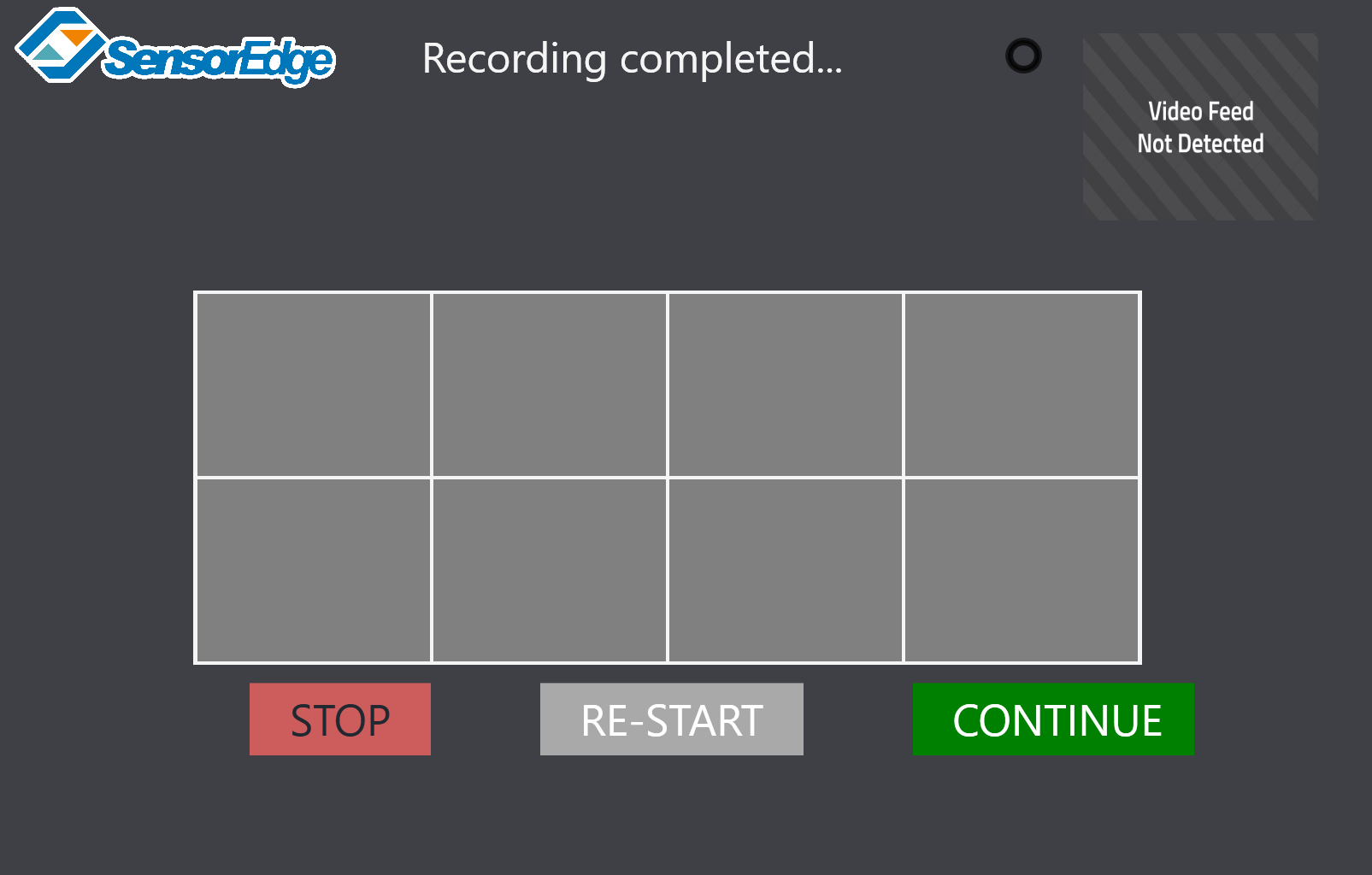

Completed recording

If you are not happy with the recording, perhaps you made a mistake? You can easily restart the process by clicking restart.

Click Continue if you wish to proceed.

SEU_2021-08-11_13-13-59.png SEU_2021-08-11_13-13-59.png

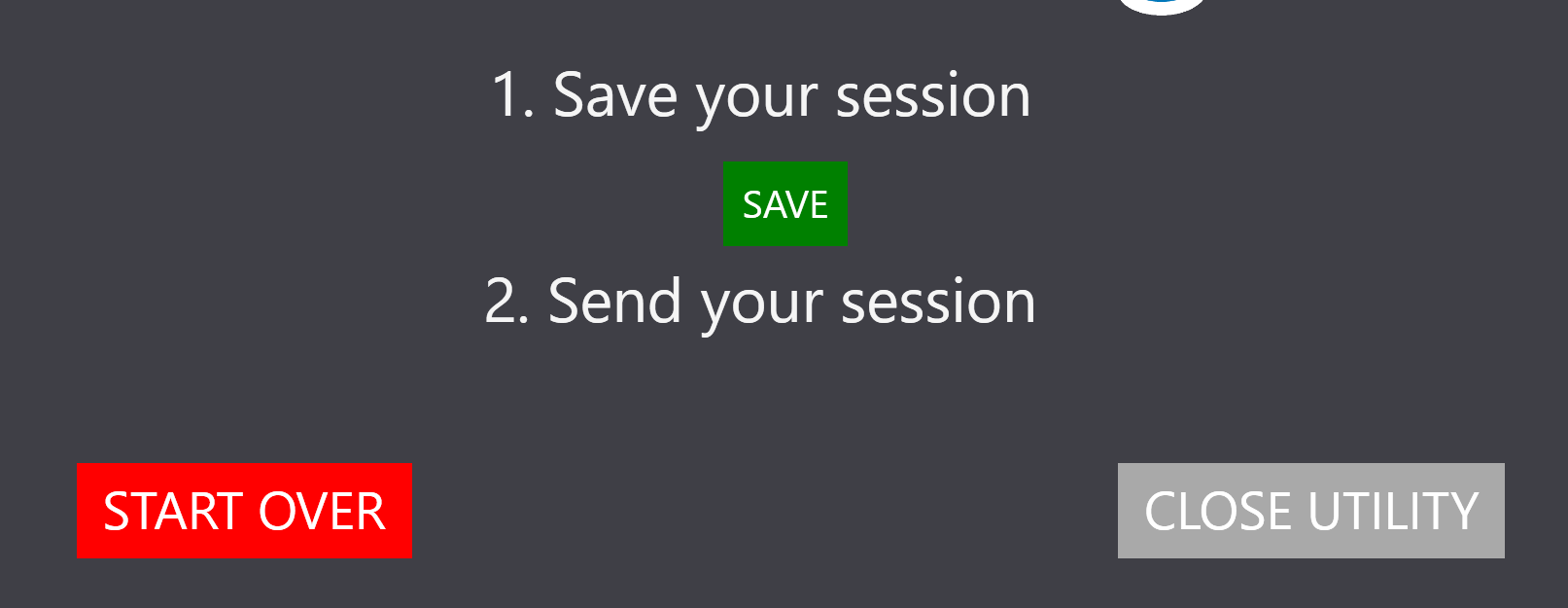

Click the Save button then click the Send button

SEU_2021-08-11_13-19-15.png SEU_2021-08-11_13-19-15.png

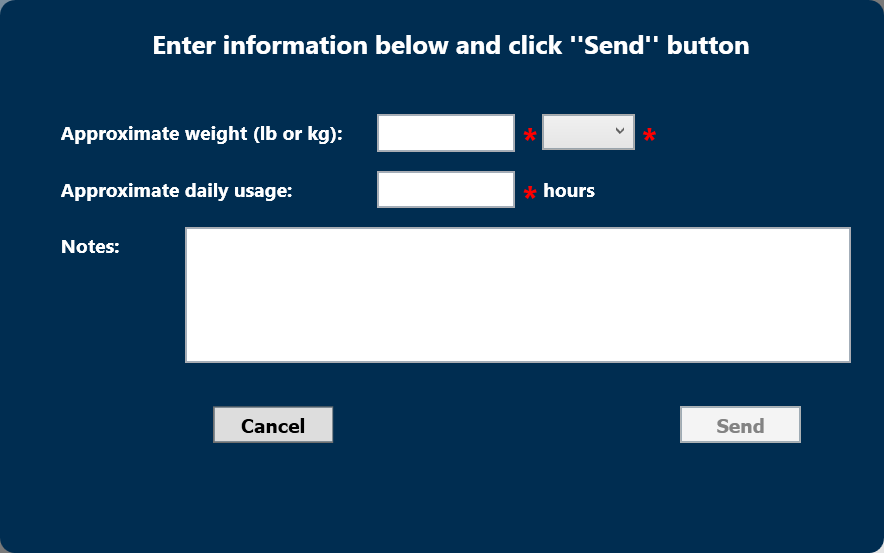

Before the data is sent to the manufacturer for review enter the approximate weight and usage.

In notes you can specify issues that you have with the plate, for example weak left foot, or other concerns.

The reason the manufacturer wishes to collect this data is to further improve the recalibration algorithms to provide more accurate sensor readings.

Enter the information and click send:

2018-12-05_14-49-34.png 2018-12-05_14-49-34.png

Once finished the calibration file is saved to your Documents folder, press “No” and then close the utility.

SEU_2021-08-11_13-40-30.png SEU_2021-08-11_13-40-30.png

Part 2: Installing the calibration file

Continue with these steps

  • Start Swing Catalyst and go to Settings –> Hardware in the main menu.

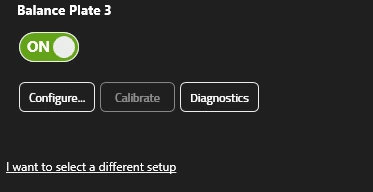

The plate should be detected automatically, if not please see the troubleshooting section.

MotionCatalyst_2021-08-11_13-51-04.png MotionCatalyst_2021-08-11_13-51-04.png

 Click the “Configure…” button to open the configuration dialog.

Sensor Plate Settings

Go to the Stance Sensor tab, and click Browse and Install.MotionCatalyst_2021-08-11_13-52-28.png MotionCatalyst_2021-08-11_13-52-28.png

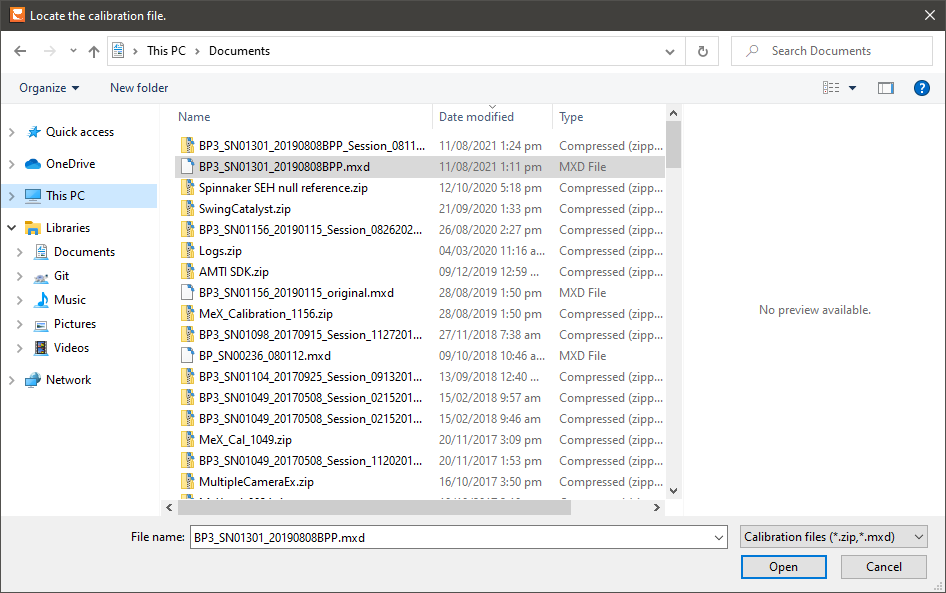

Go to the directory you saved the calibration file, e.g: C:\User\YourUsername\Documents and select the mxd file you just saved from the utility and click Open.MotionCatalyst_2021-08-11_13-54-48.png MotionCatalyst_2021-08-11_13-54-48.png

When installation is completed it will let you know and you can click OK to close the windows.

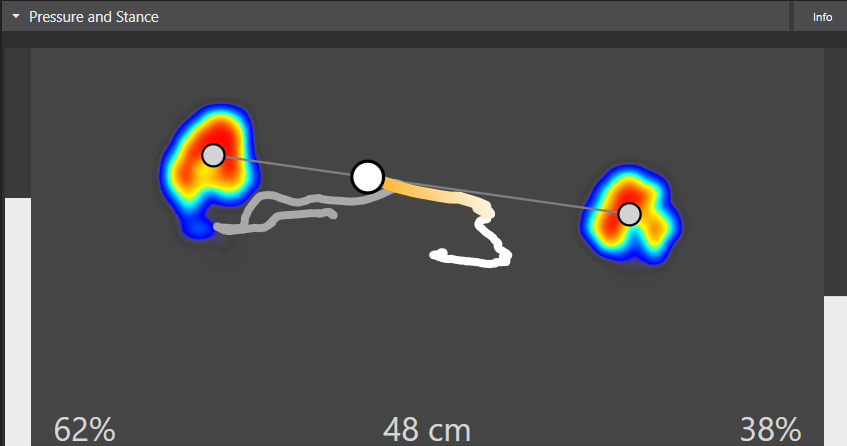

Your Balance Plate should now be ready to use. Start a new session in Swing Analysis and verify you get pressure readings in the Pressure and stance databox when capturing swings.

2017-03-03_14-30-55.png 2017-03-03_14-30-55.png

Note: It may be necessary to run a re-calibration of your Balance Plate with heavy usage, this can be done by clicking the diagnostics button in Swing Catalyst Settings, which will launch the SE Utility.

Troubleshooting

The Balance Plate is not recognized or not showing as connected:

  • Make sure the device is recognized by Windows.

Open Windows device manager. How?

  • Verify the **Sensor Edge **device is present under Ports (COM & LPT)

  • If it is not, or has a warning symbol, then try reinstalling the drivers and reconnecting the device to a different USB port.

  • Connect the device to a different USB port on the computer.

  • If using a USB extender, try connecting the device to the PC without an extender.

  • Restart Swing Catalyst.

  • Restart the computer.

  • If you tried all these steps and it still shows as not connected in Swing Catalyst, please contact our support team.

Calibration is not installed successfully

  • The calibration file you received from the Sensor Edge Utility may be bad or the file may have become corrupted, try to run the utility again and install the new calibration file. If this doesn’t work, contact our support team.

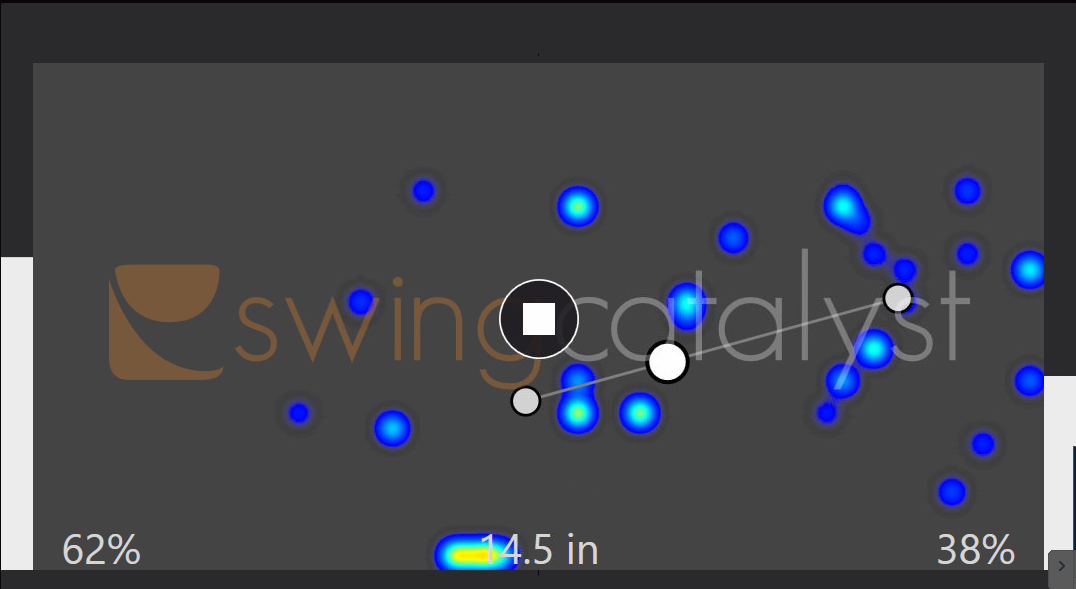

There is noise on the plate even though I’ve run the utility

TeamViewer_2019-05-03_09-53-27.png TeamViewer_2019-05-03_09-53-27.png

Noise can be present due several factors:

  • Wrong or no calibration file installed in Swing Catalyst.

  • Heavy usage: The calibration utility should be run often, even once a month for heavily used plates.

  • Direct exposure to sunlight.

  • Wear and tear on the sensors themselves.

The utility may not be able to filter out the noise if the signal to noise ratio is not good enough, the plate will in this case need to be recalibrated through an RMA. The manufacturer will then manually inspect the session that is generated by the utility to see if they can improve upon it.

If the manufacturer is unable to fix the issue and the plate is under warranty or ESA (extended service agreement), the plate can be shipped back to the manufacturer as long as an RMA is present.

Hardware incompatibilities

Some issues have been seen with AMD 300-Series chipsets (AMD Ryzen 1700 / 2700 series ) with USB 1.1 devices. Specifically with the Balance Plate, where you only get 75 samples per second instead of ~145 samples per second. We recommend using a USB 2.0 hub which will allow the Balance Plate to stream at full sample rate.

There are no known issues as far as using the AMD 300 series chipsets with USB 3.0 devices.
